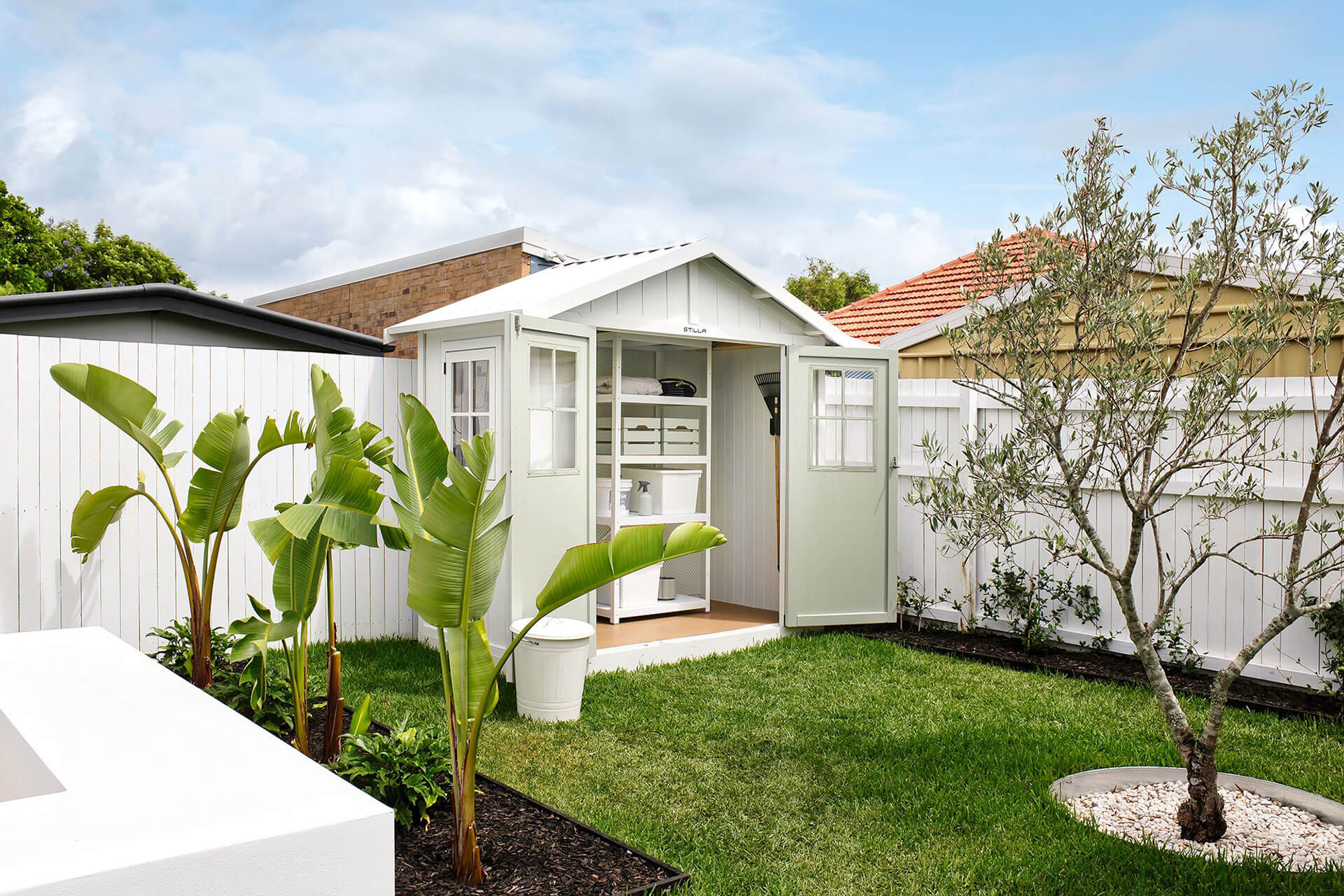

Adore Home Magazine Garden Shed Tour

Opening Window

Dimensions: 630 x 630 mm
Cedar Frame & Clear Acrylic
The window is placed in the centre of the wall panel. The wall panels are interchangeable.

Additional Opening Window

Dimensions: 630 x 630 mm
Cedar Frame & Clear Acrylic
The window is placed in the centre of the wall panel. The wall panels are interchangeable.

Additional Opening Window

Dimensions: 1200mm x 640mm.
Cedar Frame & Clear Acrylic.
The window is placed in the centre of the wall panel. The wall panels are interchangeable.

Subfloor

140 x 35mm Treated Pine Framing
19mm Yellow-tongue Flooring
750mm long 100 x 100 mm Treated Pine Posts
Suitable for uneven ground. It is recommended that the posts are concreted 400-500mm in the ground.

Subfloor

140 x 35mm Treated Pine Framing
19mm Yellow-tongue Flooring
750mm long 100 x 100 mm Treated Pine Posts
Suitable for uneven ground. It is recommended that the posts are concreted 400-500mm in the ground.

Subfloor

140 x 35mm Treated Pine Framing
19mm Yellow-tongue Flooring
750mm long 100 x 100 mm Treated Pine Posts
Suitable for uneven ground. It is recommended that the posts are concreted 400-500mm in the ground.

Skylight

The skylight is a clear fiberglass panel that replaces one colorbond roof sheet.

Dimensions
Windsor	880 x 760 mm
Richmond, Palmwood, Oxford, Hazel, Maple	1150 x 760 mm
Hyland, Glendale, Master, Willow	1480 x 760 mm

Rebated Floor

70 x 35 mm Treated Pine Framing
19mm Yellow-tongue Flooring
Suitable for any level surface (grass/dirt/gravel etc.)

8ft Loft Shelf

Dimensions: 2400 x 300 mm
The loft shelf provides extra storage under the roof of the shed.

6ft Loft Shelf

Dimensions: 1800 x 300 mm
The loft shelf provides extra storage under the roof of the shed.

Lean-to

Dimensions
Palmwood, Hyland	1150 x 1840 x 1900 mm (Front x Side x Height) The lean-to is an awning either side of the shed.
Gelndale	1150 x 2440 x 1900 mm (Front x Side x Height) The lean-to is an awning off either side of the shed.
Oxford	1150 x 2740 x 1900 mm (Front x Side x Height) The lean-to is an awning off either side of the shed.
Hazel	1150 x 2740 x 1900 mm (Front x Side x Height) The lean-to is an awning off the front or back of the shed.
Master	1150 x 3640 x 1900 mm (Front x Side x Height) The lean-to is an awning off either side of the shed.
Maple, Willow	1150 x 3640 x 1900 mm (Front x Side x Height) The lean-to is an awning off the front or back of the shed.
Chatswood	1150 x 4840 x 1900 mm (Front x Side x Height) The lean-to is an awning off either side of the shed.
Hollydean	1150 x 4840 x 1900 mm (Front x Side x Height) The lean-to is an awning off the front or back of the shed.

Annex

Dimensions
Oxford	1480 x 2740 x 1900 mm (Front x Side x Height) The annex is an awning off either side of the shed.
Glendale	1480 x 2440 x 1900 mm (Front x Side x Height) The annex is an awning off either side of the shed.
Hazel	2740 x 1480 x 1900 mm (Front x Side x Height) The annex is an awning off the front or back of the shed.
Master	1480 x 3640 x 1900 mm (Front x Side x Height) The annex is an awning off either side of the shed.
Maple, Willow	3640 x 1480 x 1900 mm (Front x Side x Height) The annex is an awning off the front or back of the shed.
Chatswood	1480 x 4840 x 1900 mm (Front x Side x Height) The annex is an awning off either side of the shed.
Hollydean	4840 x 1480 x 1900 (Front x Side x Height) The annex is an awning off the front or back of the shed.

Slide Kit

Includes an adjusted railing & ground pegs to make provision for a slide to be attached to the Hideout Tower.
The slide is NOT included – you can purchase 2.2m slide from Bunnings to suit the 1m elevation. Click Here.

Double Doors

Dimensions: 1850 x 1440 mm
This option is an upgrade from a single door to double doors, it is not an extra set of doors.

Gable Wall Double Doors

Dimensions: 1850 x 1440 mm
This option is an upgrade from a single door to double doors, it is not an extra set of doors.

Extra Height

Adding extra height will automatically add ply bracing and sarking.

For the Hazel/Maple/Willow/Hollydean adding extra height will take the doors and windows one board higher, taking the doors from 1775mm high to 1875mm high.

For the Oxford/Glendale/Bromley/Master/Chatswood the doors will remain at 1875mm high.

Extra Height

For the Jarrah/Oakley/Pioneer adding extra height will take the doors and windows one board higher, taking the doors from 1775mm high to 1875mm high.

For the Barakula/Beech/Spruce/Jacaranda the doors will remain at 1875mm high.

Roof Insulation
